Product specifications:
Mesh (mm): 75x150, 50x200
Mesh (mm): 18002400 x3000
After mesh molding (mm): 4.0-5.0
Column size (mm): 48x2x2200
Column spacing (mm): 3000
Column pre-buried (mm): 300-400
Pre-buried foundation (mm): 500x300x300 or 400 x400 x400
product advantages:
Good anti-corrosion performance, anti-aging, beautiful appearance,
easy and quick installation. Its products are beautiful in
appearance and diverse in color, which can play the role of fence
and beautify.
Applications:

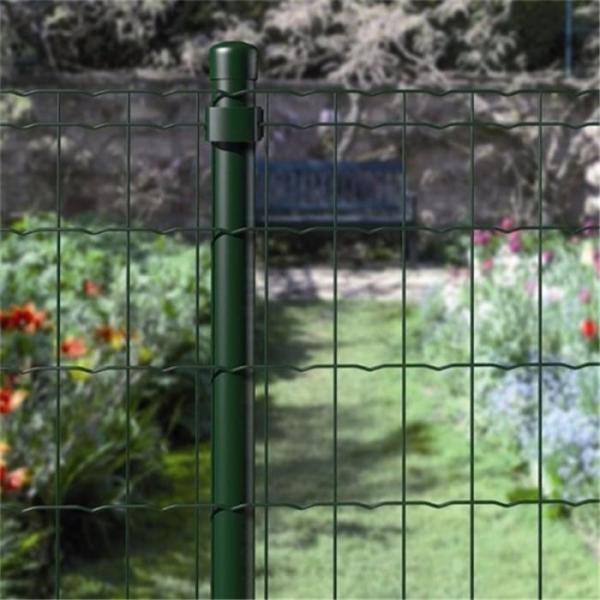

The fence mesh can be used for the decoration protection of
highways, airports, municipal green spaces, garden flower beds,
unit green spaces, and port green spaces.
| Wire Diameter |
| | |
2" X 2" | 50.8 X 50.8 | 1.3mm-1.7mm |
2" X 2" | 50.8 X 50.8 | 1.6mm-2.0 mm |
2" X 2" | 50.8 X 50.8 | 2.0mm-2.5 mm |
2" X 2" | 50.8 X 50.8 | 2.2mm-2.7 mm |
2" X 2" | 50.8 X 50.8 | 2.5mm-3.0mm |
2" X2" | 50.8 X 50.8 | 3.0mm-3.5mm |
2" X 4" | 50.8 X 100 | 1.7mm-2.1mm |
2" X 4" | 50.8 X 100 | 2.0mm-2.5mm |
2" X 4" | 50.8 X 100 | 2.5mm-3.0mm |
1,Choice of common colors:
Moss green RAL 6005
Grass green RAL 6073
Every RAL color desired can be delivered, for example the colors
corresponding to your corporate design
2,Characteristic:
With refined design, lower prices, convenient installation, this
kind of item is very favorable for the users. Using high quality
steel as raw material, the welded panels body is very plain and
strong resistance strength. Especially the horizontal wire is wavy.
Good corrosion resistance, ant aging, nice appearance, easy and
quick installation. It is well suitable for a wide range of
application, for example, for park, road and etc.
3,Processing:
PVC coated after welding of galvanized steel wire.
4,Application:
Commercial grounds (Corporation, hotel, supermarket)
Private grounds (Courtyard, Villadom)
Public grounds (Park, zoo, train or bus station, lawn)
Road and transit (Highway, railway or road city transit)
Used as fencing, decoration or protection for various facilities in
industry, agriculture, infrastructure, transport, etc
5,Accessories:
steel wire clips or plastic clamp,cap,plier.
6,Installation:
The mesh panels and posts are jointed together with the special
plastic clamp or strength steel wire clips. They are easy to
installation.
The PVC is free of lead,cadmium and DOP.
Colour: Green RAL6005 , White , Black
Advantage :Factory Directly Sales
a. Pass CE European standard
b. Have exported to USA , Eu, Australia
