Roll Top Triangle Bending 3d Curved Fence Brc Welded Fence Sustainable

Ask Lasest Price
Brand Name :	Bingze
Model Number :	SGS2053411512
Certification :	ISO9001-2015
Price :	15$-20$
Payment Terms :	T/T, L/C, Western Union, MoneyGram
Supply Ability :	20000 pieces per week
Delivery Time :	12-15 days

Add to Cart

Product Details
Company Profile

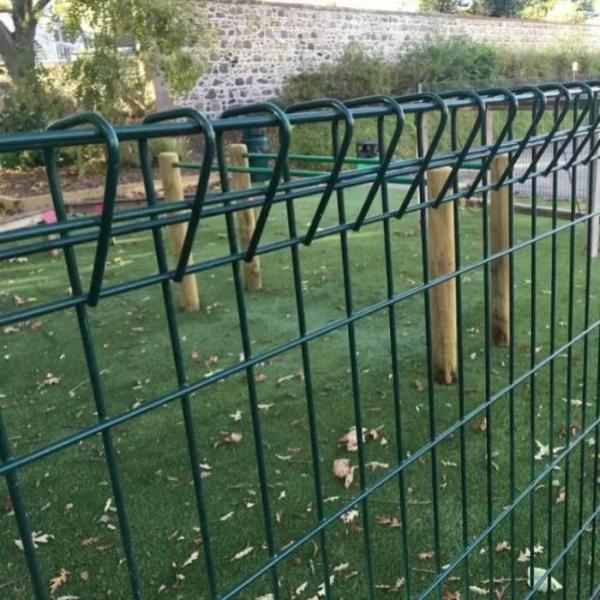

Roll Top Triangle Bending 3d Curved Fence Brc Welded Fence Sustainable

Roll Top Triangle Bending Brc Welded Wire Mesh Fence 3d Curved Fence

Product Description
- 3D curved fence is also called the Curved Wire Mesh fence. This is a new type of fencing, which is mainly popular in developed countries such as the United States, Japan, Korea, and so on. The 3d fence has the characteristics of beautiful appearance, no limitation of terrain fluctuation and convenient installation.
- 3D Curved Fence is wide used for Garden, factory, road, highway, public buildings, parks, government buildings, ball court,
industry & commercial sector and so on.

Roll Top Triangle Bending 3d Curved Fence Brc Welded Fence Sustainable

Surface Treatment: Hot dip galvanized

Product Specifi

Surface Treatment:

Specifications for 3D curved fence choose the size you want as follows ,

1. Powder coated galvanized;
2. PVC coated;
3. Hot dipped Galvanized;

Mesh Opening	50x100mm/50x150mm/50x200mm/55x200mm/75x150mm
Wire Diameter	3.0/3.5/4/4.5/5.0mm
Panel Height	0.6m- 3.0m (Suggest size:1.83m/2.1m/2.4m)
Panel Width	2.0m-3.0m (Suggest size:2m/2.5m/2.9m)
Post Type	Round Post: 48x1.5/2.0mm 60x1.5/2.0mm
	Square Post (SHS): 50X50X1.5/2.0mm 60x60x1.5/2.0mm 80x80x1.5/2.0mm
	Rectangular Post(RHS): 40X60X1.5/2.0mm 40X80X1.5/2.0mm 60x80x1.5/2.0mm 80x100x1.5/2.0mm
Surface Treatment	hot dipped galvanized,galvanized+powder coated,galvanized+PVC coating
Color	RAL 6005 Green, RAL7016 gray,All RAL color can be customized
Note	The fence can be customized according to your required if above specification is not satisfied with you
Contact Now	Most of the panels are customized, please let us know your request

Production Process

Material → Straighten & cut short →Welding → Making Curves → Parkerising & Powder coating → Packaging → Container Loading

Product features

Packing & Delivery

3D Curved Fence Packing Details:

1> There is piece of bubble plastic at the bottom of the pallet to avoid the pallet destroyed the panels

2> There are 4 metal corners to keep the pallet more strong.

3> There is metal plate under each line of plastic bandage to reduce the apressure of fence panels.

4> There are steel plates on the top of fence panels which can protect the fence panels avoid being crushed by other pallets.
