Welded Galvanized Gabion Box 2x1x0.5m Stone Wire Cages For Garden
Fence
Gabion Types ---------------------------------------------------------------------------------------------------------------------------------------------------------------------
Our Gabion products can be decided into two types
One is Gabion box which can be used as retaining walls,
landscaping, garden etc.
Another types Gabion Box fence mainly is used for landscaping, and
stone fences, have the aesthetic appearance.

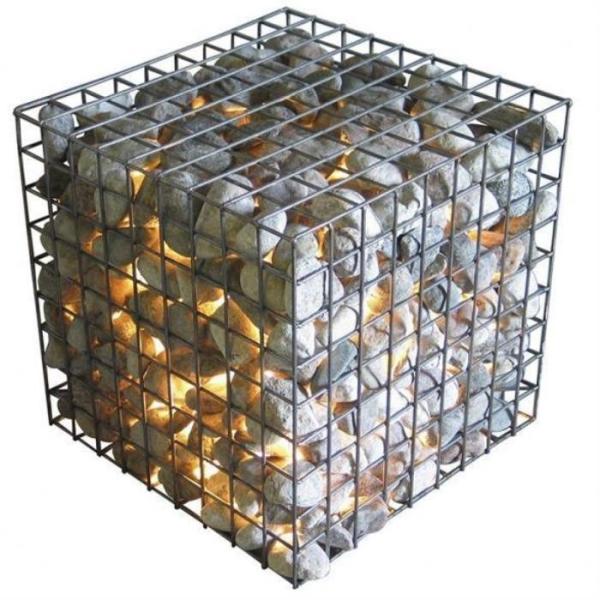

Gabion Box
Gabion Box (or gabion cages) are a cost effective, robust and easy to install
solution for a range of applications, from commercial and domestic
landscaping, retaining walls, and Gardens beauty.
Gabion boxes are made of heavy galvanized wire / ZnAl (Golfan)
coated wire / PVC coated wires, the mesh shape is hexagonal style.
The gabion boxes are used widely in slope protection, foundation
pit suporting, mountain rock holding, river and dams scour
protection. Gabion boxes can be supplied in various lengths, widths
and heights. In order to strengthen the boxes,all the edges of the
structure shall be selvedged with wire of bigger diameter. It can be moved relatively easily by a simple hand truck by a
single person. Simple installation. No special technology needed.
Welded wire gabion network installation fast and convenient and
simple structure and beautiful, save work time saving, high work
efficiency.
The advantages
1. High Tensile Strength (600Mpa)
2. Galfan Coating (Genuine Licensed Galfan Manufacturing Partner)
BS EN 10244-2:2009 (Class A)
3. Coating Density (300g + gsm) provides extensive corrosion
resistance
4. Weld Point Depth & Strength (15% depth on cross wire)
Can be Assembled by springs, C-rings. Reinforced by Hooks.
Product Specifications --------------------------------------------------------------------------------------------------------------------------------------------
| Gabion Box |
| Opening(mm) | Wire diameter metal wire(mm) | Wire diameter PVC coated/inner /outside(mm) | Strands |
| 60 x 80 | f2.0/2.8 | f2.0/3.0-f2.5/3.5 | 3 |
| 80 x 100 | f2.0/3.2 | f2.0/3.2-f2.8/3.8 | 3 |
| 80 x 120 | f2.0/3.2 | f2.0/3.2-f2.8/3.8 | 3 |
| 100 x 120 | f2.0/3.4 | f2.0/3.0-f2.8/3.8 | 3 |
| 100 x 150 | f2.0/3.4 | f2.0/3.0-f2.8/3.8 | 3 |
| 120 x 150 | f2.0/4.0 | f2.0/3.0-f3.4/3.4 | 3 |
| Product Name | Gabion Box |
| Material | galvanized wire ,galfan wire and PVC coated wire , |
| Gabion mesh wire | 2.2mm,2.4mm,2.7mm,3.2mm,3.4mm,4mm |
| Gabion selvedge wire | 2.4mm,2.7mm,3mm,3.4mm,4mm |
| Gabion lacing wire | normally 2.2mm |
| Gabion box mesh hole | 6*8cm,8*10cm,10*12cm,12*15cm |
| Zinc coating | 40-260g/m2 |
| Gabion box PVC color | darkgree, gray ,black , etc. |
Our Gabion box is made from strengthened hot dipped galvanized or
zinc-aluminium coated steel which delivers exceptional corrosion
resistance.
Installation Methods ---------------------------------------------------------------------------------------------------------------------------------------------------
There are two common installation methods for gabion box.
1. Gabion Boxes installation by spring wires.
Welded Gabion Box Accessories |
1 | Welded mesh panel | 6 pcs |
2 | Spiral spindle | 12 pcs |
3 | Corner stiffer | 2-8pcs |
4 | Diaphgram | 1 pc per meter |
2. Gabion Boxes installation by C clips
Using C Clips instead of spring wires is also a common installation
method of gabion boxes. This installation method is simpler and
more economical than spring wires. Ir is also a good choice for
customers.
Gabion Fence
Gabion Box Fences, are robust and easy to install solution for a range of
applications, which are often used for their aesthetic appeal and
can be customized to fit any landscape design. They are also known
for their ability to absorb sound and reduce noise pollution.
Additionally, gabion fences are low maintenance and can last for
many years with minimal upkeep.
Gabion Box Fence Specifications -----------------------------------------------------------------------------------------------------------------------------
The Gabion Box fence are made of strong double welded steel wire to
ensure the sturdiness, and keep the aesthetic shapes. and with the
galvanized or powder coating surface treatment delivers exceptional
corrosion resistance, meanwhile to show the Beautiful appearance.
Gabion Sizes | Mesh sizes | wire diameter | Material |
200x200x20cm | 5x20 cm | 5/4/5mm, 6/5/6mm | - hot dipped galvanize steel wire - Galfan & zinc-5%aluminum wire |
250x200x20cm | 5x20 cm | 5/4/5mm, 6/5/6mm |
250x200x30cm | 5x20 cm | 5/4/5mm, 6/5/6mm |
We can also Customised sizes
Product Applications ------------------------------------------------------------------------------------------------------------------------------------------------------
- Control and guide of water or flood;
- Flood bank or guiding bank;
- Preventing of rock breaking;
- Water and soil protection;
- Bridge protection;
- Strengthening structure of soil;
- Protection engineering of seaside area.
Company Profile --------------------------------------------------------------------------------------------------------------------------------------------------------------
Anping Bingze Wire Mesh Products Co., Ltd. has focused on the
production and research and development of stainless steel wire
mesh for 25 years. It is a manufacturer integrating production,
processing, distribution and wholesale. The main products include
galvanized welded wire mesh,stainless steel welded wire mesh,PVC
welded wire mesh,crimped wire mesh,galvanized woven wire
mesh,stainless steel woven wire mesh,chain link fence,steel
fence,welded wire mesh fence panels,PVC euro fence,358 anti-climb
fence,razor wire,Hesco Barrier,Gabion Box and so on.Since its
beginning,we have been working at four points, they are High
Quality,Quick Delivery,Better Price and Thorough Service,Rely on
the product quality and our credit standing, we have got favourable
comments from the customers.The company introduces precise making
machines and technics,combinning scientific inner managing method
and quality control system.Since the year it was established ,we
developed our powder and credit standing and got reliances of our
customers in home and abroad.Our products is checking by very high
standeard, and the qualified ones leaved the factory to the whole
county an some aabroad countries,such as Southeast Asia,Middle
East,Ameria,Japan,and some Africa countries.
Certifications --------------------------------------------------------------------------------------------------------------------------------------------------------------------
FAQ ---------------------------------------------------------------------------------------------------------------------------------------------------------------
Q: How long is your delivery time?
Generally it is 3-7 days if the goods are in stock. or it is 15-20
days if the goods are not in stock, it is according to quantity.
Q:Do you provide samples?
Yes, we can provide the product samples for your test.Its free and
freight should be collected by your side.
Q:How can I know the completion of my order?
Deposit payment---start production---transfer infro to
logistic---book shipment--inform customer ETD&ETA---load
container---balance payment---send documents
Q:How can I know whether you are a reliable company?
We have been in this business line since 1987,with too much
exporting experience. Above listed our certifications.
